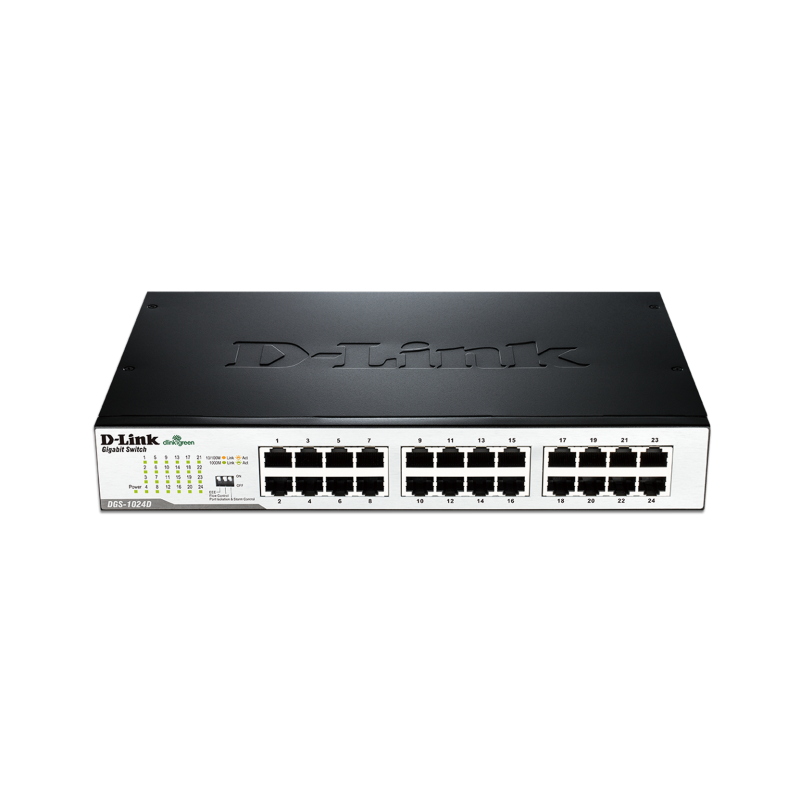

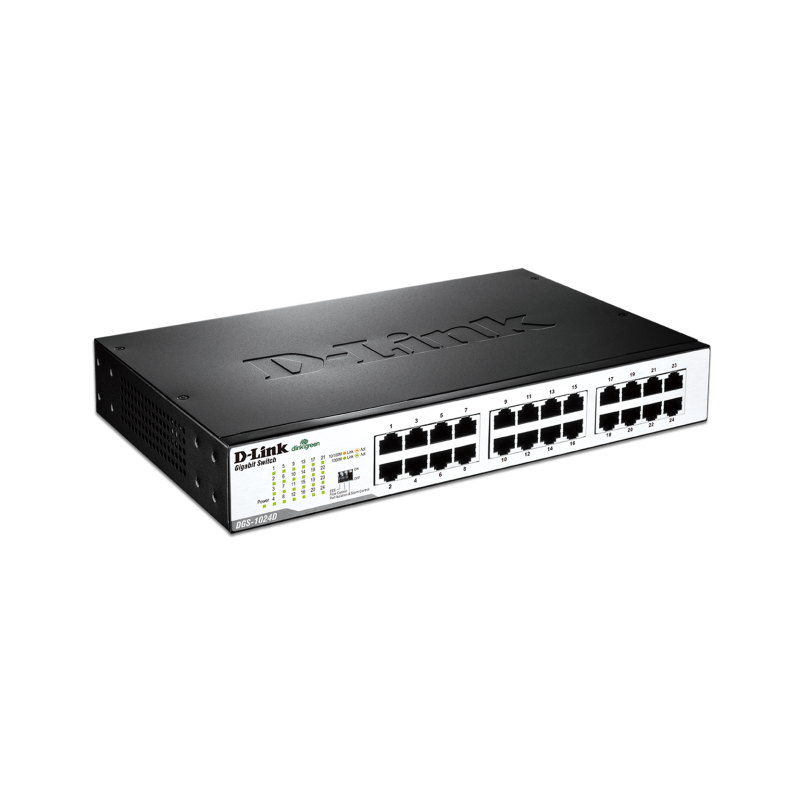

D-Link 24-Port Gigabit Unmanaged Desktop/Rackmount Switch DGS-1024D

Description

Technical Specifications

General

Number of Ports
• DGS-1016D: Sixteen 10/100/1000 Gigabit ports
• DGS-1024D: Twenty-four 10/100/1000 Gigabit ports

Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control

Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full duplex)

Network Cables
• 10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max)
• EIA/TIA-586 100-ohm STP (100 m max)
• 100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max)
• EIA/TIA-568 100-ohm STP (100 m max)

Functionality

D-Link Green Features
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Link status detection power saving
• RoHS Compliance

Media Interface Exchange
• Auto MDI/MDIX

Transmission Method
• Store-and-Forward switching method

MAC Address Table
• 8K MAC addresses

RAM Buffer
• 512 KBytes RAM for data buffering

Jumbo Frames
• DGS-1016D: 9216 Bytes
• DGS-1024D: 9600 Bytes

Switching Capacity
• DGS-1016D: 32 Gbps
• DGS-1024D: 48 Gbps

Port Packet Filtering
• 10M: 14,880 pps
• 100M: 148,800 pps
• 1000M: 1,488,000 pps

Physical

Front Panel Switches1
• (#1) Enable/disable EEE
• (#2) Enable/disable Flow Control
• (#3) Enable/disable Port Isolation/Broadcast Storm Control

LEDs
• DGS-1016D:
• Power LED
• 16 Link/Activity/Speed LEDs (one per port)
• DGS-1024D:
• Power LED
• 24 Link/Activity/Speed LEDs (one per port)

Power Inputs
• 100 to 240V AC Input

Power Consumption
• DGS-1016D:
• Standby: 4.78 watts
• Maximum: 10.24 watts
• DGS-1024D:
• Standby: 5.0 watts
• Maximum: 12.5 watts

Heat Dissipation
• DGS-1016D:
• Standby: 16.30 BTU/h
• Maximum: 34.94 BTU/h
• DGS-1024D:
• Standby: 17.06 BTU/h
• Maximum: 42.66 BTU/h

MTBF
• DGS-1016D: 908,130 hours
• DGS-1024D: 1,157,698 hours

Dimensions
• DGS-1016D: 11.02 x 4.92 x 1.73 inches (280 x 125 x 44 mm)
• DGS-1024D: 11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)

Weight
• DGS-1016D: 2.29 lbs (1.04 kg)
• DGS-1024D: 2.98 lbs (1.35 kg)

Temperature
• Operating: 32 to 104 °F (0 to 40 °C)
• Storage: 14 to 158 °F (-10 to 70 °C)

Humidity
• Operating: 5% to 90% RH, non-condensing
• Storage: 5% to 95% RH

Certifications

Emissions Certifications (EMI)
• FCC Class A
• ICES-003 Class A
• CE Class A
• VCCI Class A
• C-Tick Class A
• CCC
• BSMI
• KCC

Safety
• cUL/UL
• CB
• CCC
• BSMI
• CE(LVD)

Ordering Information
• DGS-1016D 16-Port Gigabit Unmanaged Desktop or Rackmount Switch
• DGS-1024D 24-Port Gigabit Unmanaged Desktop or Rackmount Switch

Warranty Information
• Limited Lifetime Warranty

1Front panel control switches are applicable only for DGS-1016D hardware rev G3 and higher, and for DGS-1024D hardware rev G2 and higher.
